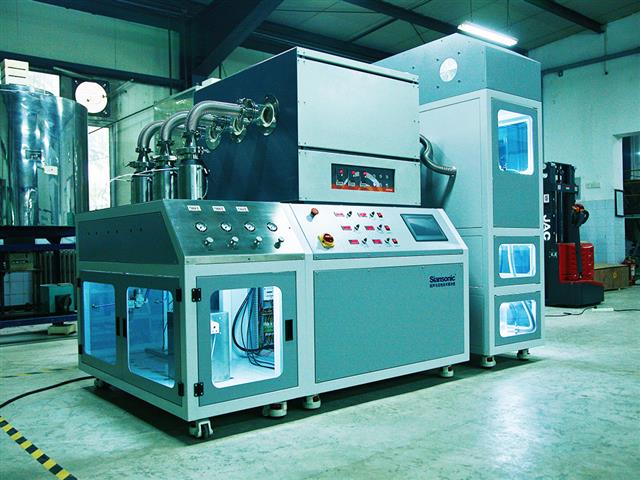

Pilot-scale Ultrasonic Spray Pyrolysis System

  • Ultrasonic spray pyrolysis system for fine powder preparation in pilot scale

  • Ultrasonic atomization technology atomizes precursor into submicron droplets

  • Ultrafine powder in nano scale with uniform size can be prepared

  • Automatic ultra-fine powder collection system for large volume collection

  • Continuous liquid precursor delivery system for 24 hours

  • Precision control of carrier gas flow

  • Especially suitable for the preparation of metal oxide powder

ultrasonic spray pyrolysis system ultrasonic pyrolysis ultrasonic pyrolysis system particle collection waste gas disposal part

The ultrasonic spray pyrolysis process can be simply described as a series of physicochemical processes, such as mixing each metal salt into a precursor solution according to the stoichiometric ratio required for the preparation of composite powder, atomizing it by the atomizer, and then bringing it into the high-temperature reaction furnace by the carrier gas. In the reaction furnace, a series of physical and chemical processes, such as solvent evaporation, solute precipitation to form solid particles, particle drying, particle thermal decomposition, sintering and molding, are completed instantaneously, and finally ultrafine powder is formed. Using ultrasonic atomization technology, the solution can be uniformly atomized into micron or even nanometer liquid droplets, and the atomized droplets are sent to the high-temperature reaction furnace through carrier gas for pyrolysis. Ultrasonic spray pyrolysis can produce more uniform and fine powder particles than conventional pyrolysis.

 With nearly 40 years of experience in ultrasonic atomization technology, Siansonic can provide customers with R&D, pilot-scale production ultrasonic spray pyrolysis system, including ultrasonic atomization device, high-temperature tube furnace, nano powder collection system, precursor liquid supply system, carrier gas flow control, etc.

Features of Siansonic pilot-scale ultrasonic spray pyrolysis system:

  • Nano aerosol generator: Multiple aerosol generators for increasing flow rate

  • Digital megasonic generator: driving and controlling nano aerosol generator

  • Large tube furnace with multi tube channels and longer heating zone

  • Automatic nano particle collection system: capable of collecting high volume fine powders for 24 hours.

  • The precision pressure regulator and flowmeter precisely control the carrier gas.

  • Vacuum pump and compressed air pump: provide air source and atmosphere protection

  • Continuous liquid feeding system for 24 hours

  • Aerosol generator system with different droplet size depending on desired powder size

  • Aerosol generator system with different output flow rate depending on required capacity

  • Customized tube furnace depending on required capacity

Generally applicable precursor:

  • Nitrate solution

  • Chloride solution

  • Sulfate solution

  • Other acidic and alkaline salt solutions
